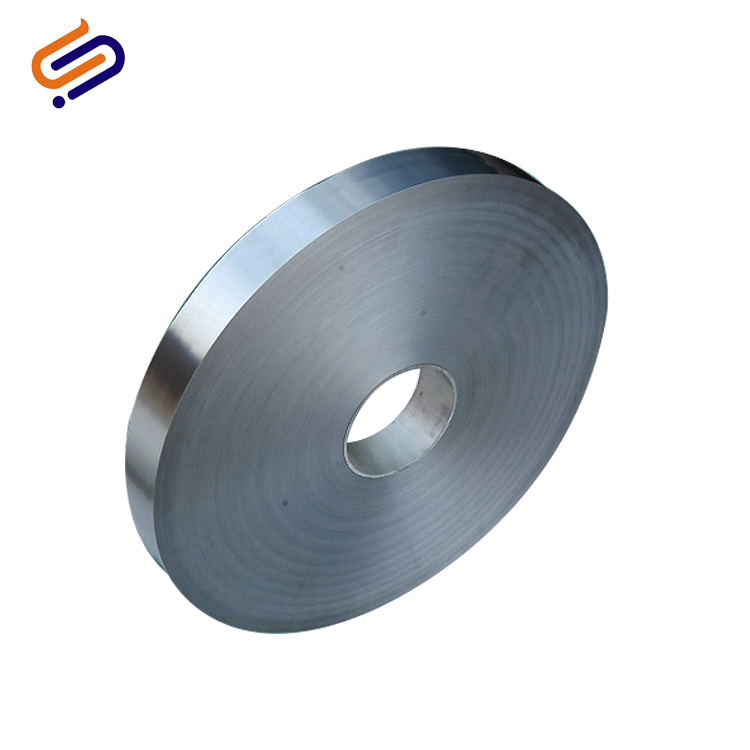

Single Side Coated Aluminum Foil for PPR Pipes Model 50-150

Single Side Coated Aluminum Foil for PPR Pipes Model 50-150

The Stabi PP-R pipes are manufactured from polypropylene random (PP-R) material and include a layer of both sides coated/laminated with polypropylene aluminum barrier. The aluminum layer is organically bond to the inner PP-R layer using thermal bonding technique under high temperature and pressure and then coated with a layer of PPR again.


Specifications

1. Propertities:

Our aluminium strip based on a new generation of materials for multilayer pipes offer outstanding advantages such as:

Excellent roll forming and welding;

Properties (for TIG, laser and overlap or butt welding) ;

High strength combined with high elongation;

Extrmely consistemt material characteristics;

Good adhesion between aluminum and polyethylene due to special chemical degrease.

The coating line, specialized in film coating.

The film coating, the film is ADMER QF551 from company Mitsui.

The slitting line, desined for slitting of narrouw and thin coils in soft conditions, ensures:

l    No sticky windings and no staining;

l    Less manipulation after sltting, less risk for damage and contamination;

Uniform tension throughout the whole cil via most accurate control systems;

Consistent slit edge quality due to accurate tooling: very low burr and edge deformation results in stable behaviour during the process.


Single Side Coated Aluminum Foil for PPR Pipes Model 50-150

Aluminum Alloy

3003, 8011, 8006(New!)

Temper

HO

Specification

Al Thickness

0.12mm, 0.15mm

Coating Thickness

40/50 microns on one side or both sides

Total Thickness

0.20mm, 0.23mm

Width

4-1350mm

Core

150-152mm (aluminium or paper core)

O.D.

850mm

Coating material:

polypropylene copolymer (type ADMER QF551 from company Mitsui)

Coating Density:

0.890 g/cm3

Peel strength

> 6 N/15mm

Tensile strength

125 – 165 N/mm2

Elongation

> 13%

Application

Stabi PPR pipe

Packing

Wooden pallet sutiable for long distance sea transportation
